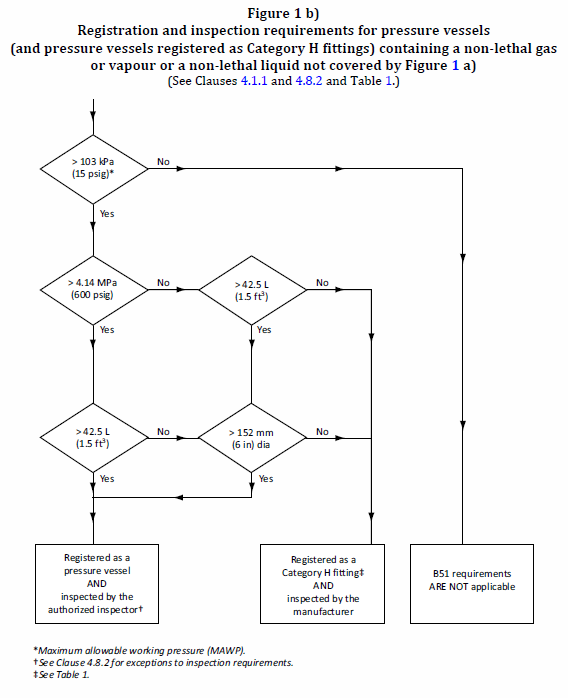

To determine if you have a vessel or a category H fitting, for most provinces you must follow the flow charts from CSA B51 as shown below for the intended service of your product.  For TSSA (Ontario) see the section after the flow charts.

To determine if you have a vessel or a category H fitting, for most provinces you must follow the flow charts from CSA B51 as shown below for the intended service of your product.  For TSSA (Ontario) see the section after the flow charts.

  • Maecenas sed diam eget risus varius blandit sit
  • Weget risus varius blandit sit amet non magna.
  • Fermentum massa justo sit amet risus.
  • Donec sed odio dui
  • Aenean lacinia

TSSA (Ontario) has released a code adoption document that states:

Section 1.4: …Items less than 6” in internal diameter or less than 1.5 cubic feet in internal volume are classified as Category “H” fittings not pressure vessels.



Always a Fitting:

The charts above only apply to Category H.  For Category A to G they are always considered fittings.  For example, a valve or flange is always a fitting, even if the volume and size from the charts above indicate it is a vessel.

Edit Content

From the flow charts above you can see that vessels require an inspection by an authorized inspector, where a fitting is inspected internally by the manufacture’s QC program. This allows the manufacturer to build as many as they want without having to repeatedly arrange for the authorized inspector to come by and approve everything.

Edit Content

Fitting registrations must be renewed every 10 years.  All calculations, drawings and supporting documents must be resubmitted to the jurisdictions.  A vessels registration never expires, but the design must be verified to the current Code edition when fabricated.

Let us partner with you

Get a variety of services to help you design a cost effective and ASME/CRN compliant product. We can help determine the best way to meet your needs.

Talk to us

We are a Canadian design and drafting company that provides services to fabrication shops and Engineering firms globally for ASME pressure-retaining devices and equipment.
